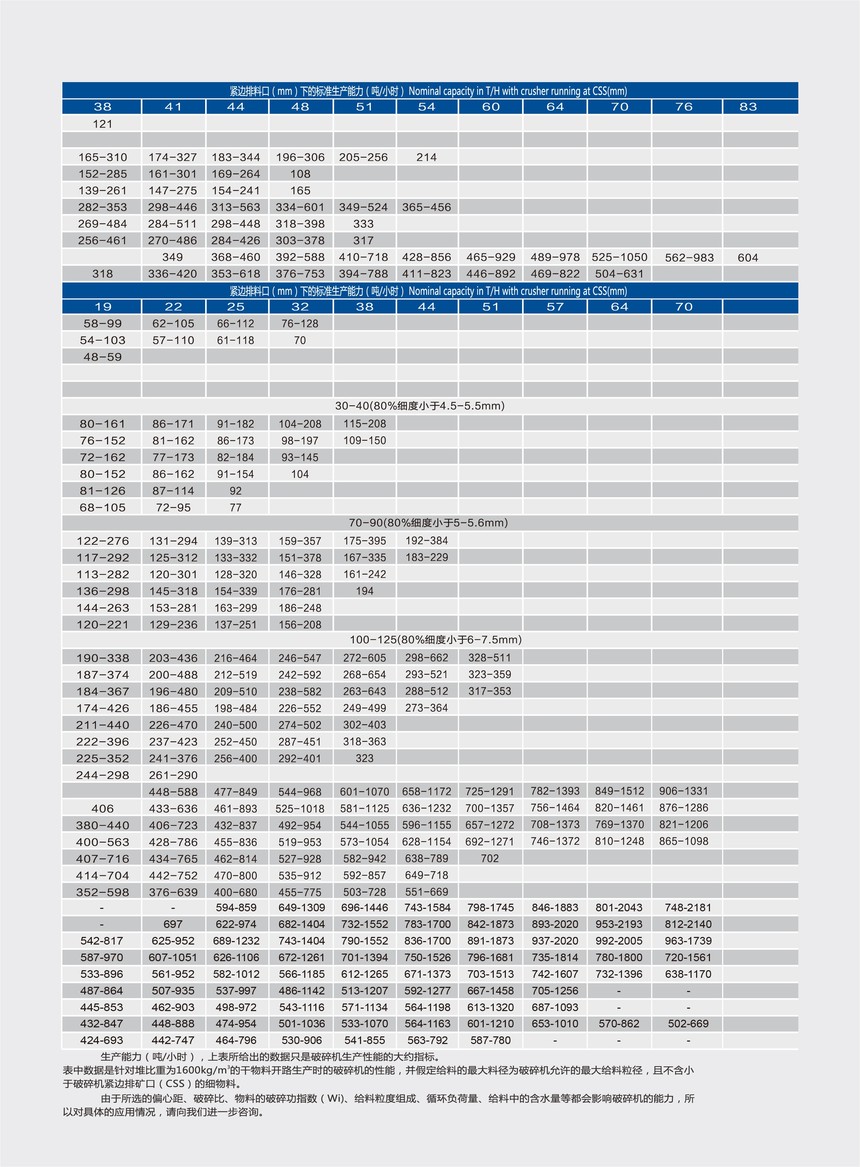

CH(CS)系列单缸液压圆锥破碎机产品介绍:RH(RS)系列单缸液压圆锥破碎机不仅具有高可靠性,而且破碎效率高、运行成本低、产品粒形好,广泛用于矿山和砂石骨料行业,适合破碎坚硬、中等硬度以上的各种物料。 进料粒度:S型 ≤560mm / 标准型 ≤ 370mm 生产能力:S型 70-1050 t/h / 标准型 27-2193 t/h 应用领域:适用于冶金、建筑、水电、交通、化工、建材工业等领域
收藏
CH(CS)系列单缸液压圆锥破碎机设备按重型工况设计,主轴上下两点支撑,受力条件好。恒定破碎腔设计使衬板磨损周期内给料和生产能力保持恒定,显著降低运行成本。多达4种的偏心距,使设备的灵活性和舒适性大大增强。配备智能型排矿口调整系统,可使破碎机的性能最大化。口设置有传统的垫片调整方式、液压辅助调整方式和楔形块液压调整方式。用压条和支撑条这种快捷的安装方式将鄂板固定在破碎机上。一些保护性部件的使用,有效地避免主要部件的损坏。降低了设备寿命周期的总成本并提高了作业率。比如在颚板与动颚和定颚间增加了可更换的垫板,在排料口处设置的可更换的支撑条均保护动颚和定颚体免于磨损;轴承座上采用了重型护板,避免轴承座的磨损等。 The CH(CS) single cylinder hydraulic cone crusher is designed for heavy duty applications with two points of support at the top and bottom of the main shaft for good stress conditions. The constant crushing chamber design keeps feed and capacity constant during the liner wear cycle, significantly reducing operating costs. Up to 4 types of eccentric distance make the plant much more flexible and comfortable. Equipped with an intelligent discharge opening adjustment system to maximise the performance of the crusher. The opening settings are available with conventional shim adjustment, hydraulic assisted adjustment and wedge block hydraulic adjustment. The jaw plate is fixed to the crusher with a quick installation method of press bars and support bars. A number of protective components are used to effectively avoid damage to the main components. This reduces the total cost of ownership over the life of the plant and increases the operating rate. For example, replaceable pads are added between the jaw plate and the jaws, replaceable support bars at the discharge opening protect the jaw and jaw body from wear and tear, and heavy duty guards are used on the bearing housing to avoid wear of the bearing housing.Translated with www.DeepL.com/Translator (free version)
|
